CapnoVibe Technical Specifications
Rugged Engineering Meets Clinical Precision.
Core Monitoring Parameters
• etCO₂ (End-Tidal Carbon Dioxide)
• SpO₂ (Oxygen Saturation)
• Respiratory Rate
• Pulse Rate
All parameters are captured in real-time with medical-grade accuracy.

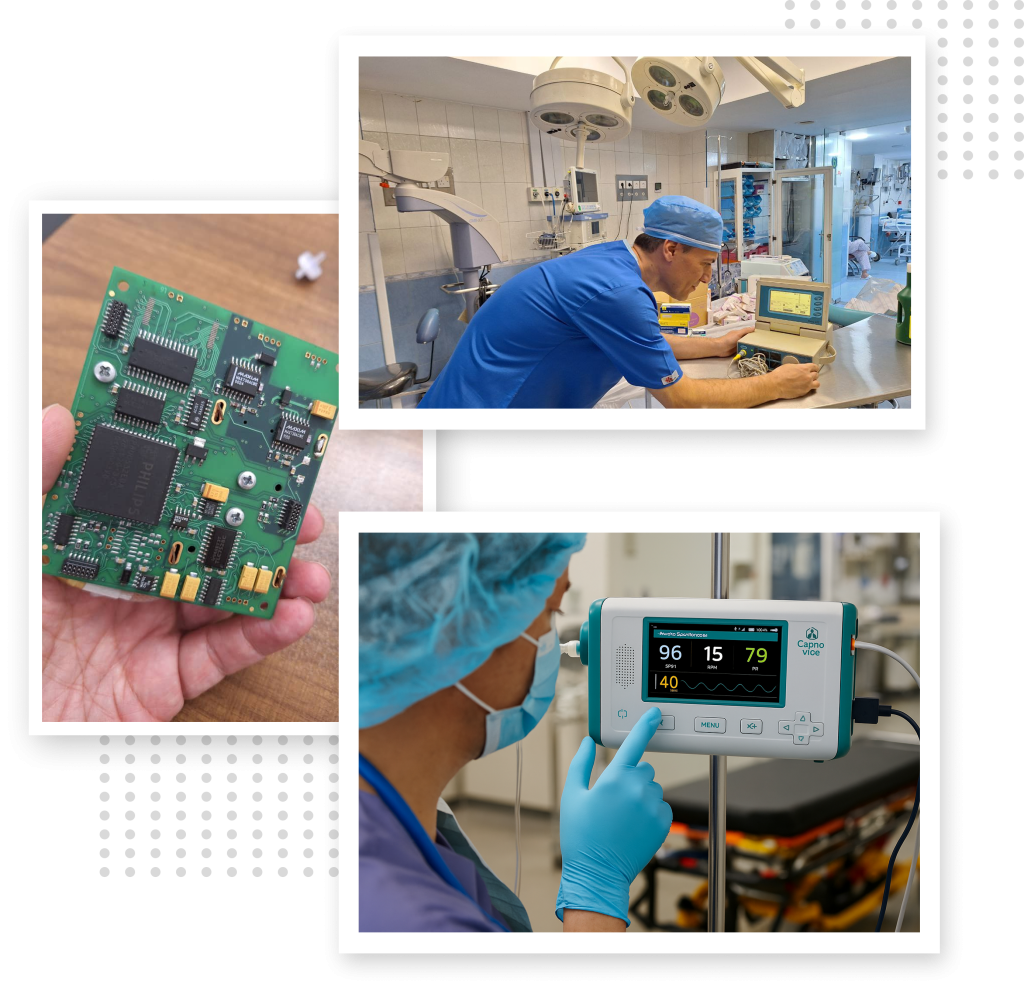

Hardware Highlights
Device Weight:
< 500g (lightweight, field-friendly)

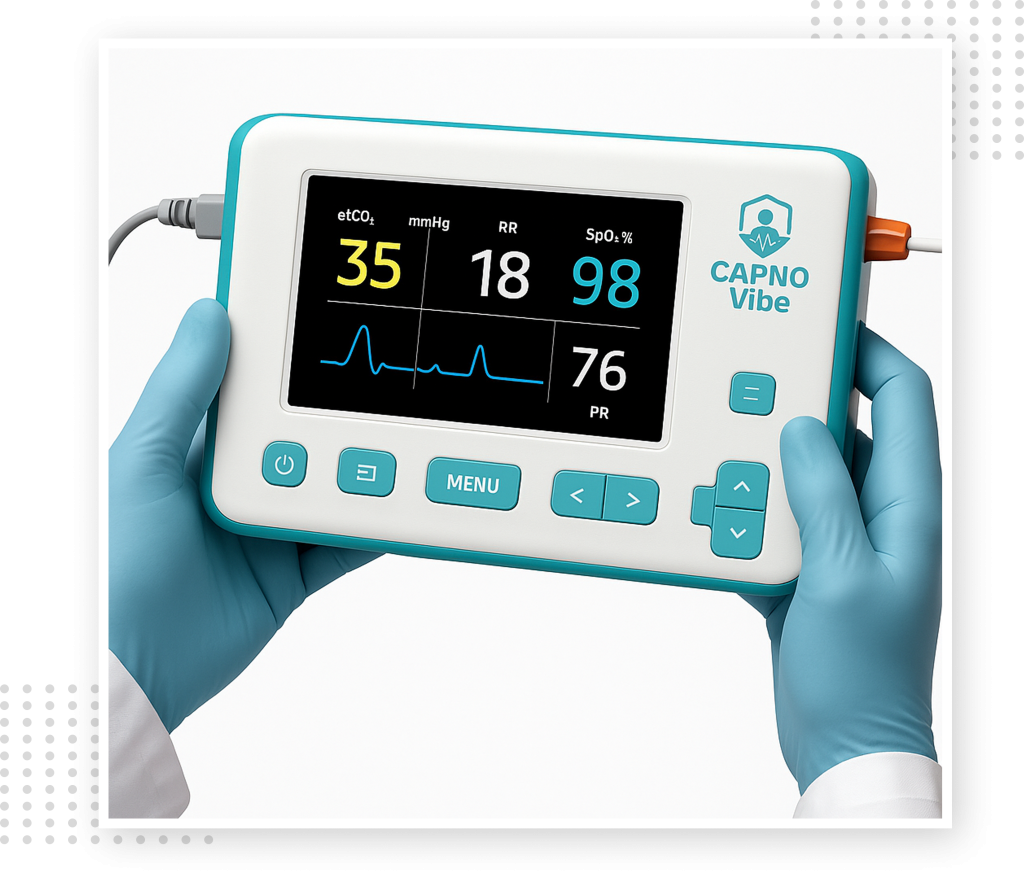

Form Factor
Compact, handheld unit with integrated touchscreen
Display
4.3" high-contrast, glare-free capacitive touchscreen
Durability
Shock-resistant housing (drop-tested), IP54 water-resistant
Power
Rechargeable lithium-ion battery (8+ hours continuous use)
Operation
One-touch start, no calibration required
Connectivity & Data
• Ports: USB-C, SD card slot
• Wireless: Wi-Fi + Bluetooth LE
• Cloud Integration: Secure encrypted sync to CapnoCloud™
• EHR Integration: FHIR-compatible API for clinical record systems
• Mobile App: iOS + Android (bilingual UI: English & French)
AI Engine
• Embedded machine learning algorithms trained on high-resolution waveform datasets
• Diagnoses and distinguishes between COPD, CHF, hypoventilation, and airway obstruction
• Predictive alerts before threshold breaches using waveform morphology and trend analysis
Population Compatibility
• Patient Range: Neonates to geriatrics
• Airway Types: Intubated and non-intubated
• Use Cases: EMS, rural clinics, mobile health units, field triage
Security & Compliance
• Data Encryption: End-to-end AES-256
• Compliance: HIPAA-ready, PIPEDA-compliant
• Offline Mode: Full-functionality without Wi-Fi; syncs upon reconnection
